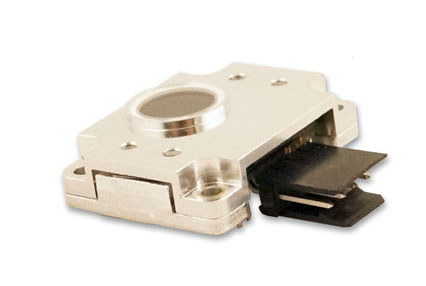

Sun Sensor

    • Sun Sensor

    Purpose:
    Designed for use in nano-satellites missions. CAN interface provides single cable connection and chains of sensors.
    Year of release: 2017
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 3
    Flight qualification of the product: Yes
    Brief history of flight qualification:
    In the composition of the satellites SiriusSat-1.2 (launched on 15.08.18.).
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Dimensions, mm 28 х 23 х 11
    Mass (w/cover), g 10
    Supply voltage, V 4..14
    Power consumption, max (im active mode), mW 20
    Data interface CAN 2.0B
    Angle of view (FOV cone) ± 60°
    Accuracy (3 sigma) < ± 0,5°
    Error (3 sigma) ± 0,1°

    Description

    Sun Sensor is a two orthogonal axes digital sun sensor. It generates the directional cosines of the angles of the direction to the sun, thus, it doesn’t require any calibration. Besides, the sun sensor’s size and weight are very small, as is his power consumpt
    ... Sun Sensor is a two orthogonal axes digital sun sensor. It generates the directional cosines of the angles of the direction to the sun, thus, it doesn’t require any calibration. Besides, the sun sensor’s size and weight are very small, as is his power consumption which is ultra-low.
    Features:
    - mid-size satellites design in light and small package;
    - ultra-low power CAN device;
    - built-in DC converter for constant consumption.
    Read more...
