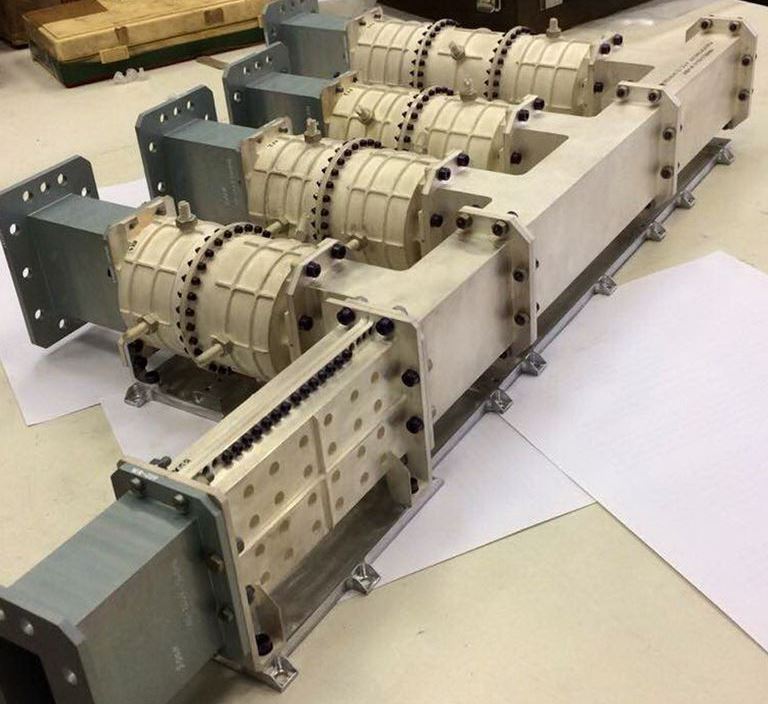

4-channel C-band Multiplexer

    • 4-channel C-band Multiplexer

    Purpose:
    Providing filtering of repeated C-band signals which are received from the four transfer devices of flight communication equipment.
    Year of release: 2016
    Guaranteed service life (years): 15
    Estimated production / delivery time (months): 4
    Submit application


    Parameter Value
    Operating frequency band: 1 channel 3430 to 3482.5 MHz; inserted losses at the band center 3456.25 MHz - not exceeding 0.38 dB; reverse losses at the band center - not less than 18 dB;
    Operating frequency band: 2 channel 3605 to 3645 MHz; inserted losses at the band center 3625 MHz - not exceeding 0.42 dB; reverse losses at the band center - not less than 18 dB;
    Operating frequency band: 3 channel 3495 to 3535 MHz; inserted losses at the band center 3515 MHz - not exceeding 0.42 dB; reverse losses at the band center - not less than 18 dB;
    Operating frequency band: 4 channel 3857 to 3893 MHz; inserted losses at the band center 3875 MHz - not exceeding 0.45 dB; reverse losses at the band center - not less than 18 dB;
    Nominal input power 125 W
    Maximum output power 500 W
    Isolation between inputs not less than 20 dB

    Description

    Passive HF device of flight communication equipment.
