Antenna-feeder Device (AFD) Ionosphere

    • Antenna-feeder Device (AFD) Ionosphere

    Purpose:
    Designed for transmitting radio signals of the spacecraft onboard transmitter to ground receiving points, for emitting coherent radio signals of the Mayak airborne transmitter of the spacecraft into the lower hemisphere (nadir).
    Year of release: 2010
    Guaranteed service life (years): 8
    Estimated production / delivery time (months): 6
    Flight qualification of the product: Нет
    Brief history of flight qualification:
    Delivered for the Ionosphere spacecraft.
    Possibility to adapt the product to customer requirements: Да
    Submit application


    Parameter Value
    Operating frequency range 137 MHz, 150 MHz, 400 MHz
    Range of communication angles 0-64 degrees
    Weight 4 kg

    Description

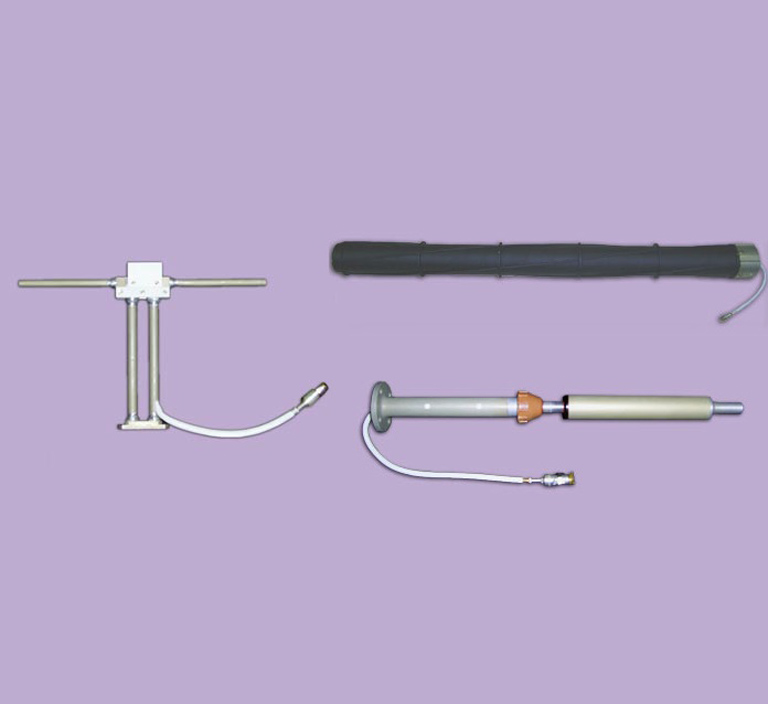

    AFD 137 MHz, AFD 150 MHz and AFD 400 MHz.
