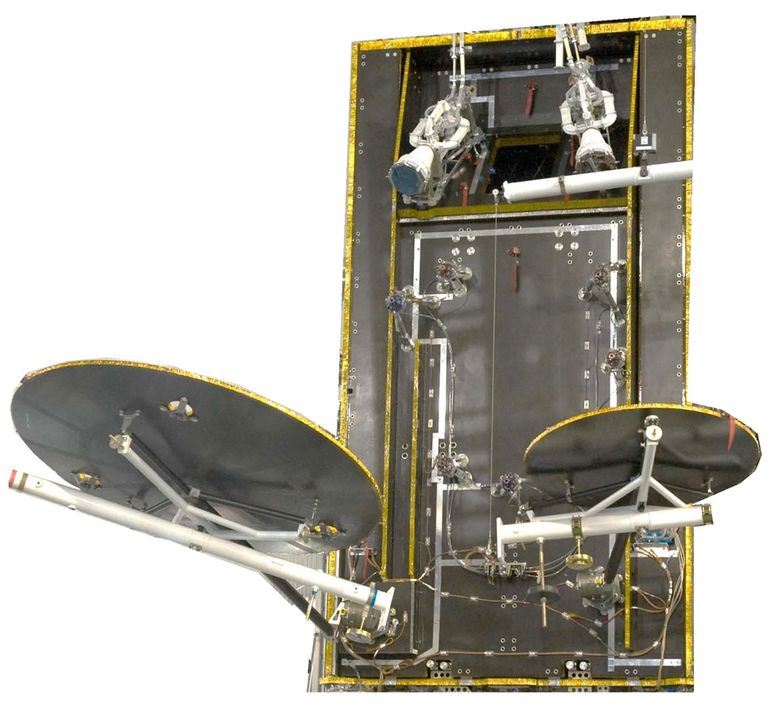

C-band Antenna which Forms Planimetric Directional Diagram

    • C-band Antenna which Forms Planimetric Directional Diagram

    Purpose:
    Forming required servicing area; signal reception within the operating frequency band.
    Year of release: 2012
    Guaranteed service life (years): 15
    Estimated production / delivery time (months): 15
    Brief history of flight qualification:
    Antenna goes through flight operation unconditionally since the launch of the spacecraft.
    Submit application


    Parameter Value
    Frequency band С
    Aperture diameter of reflectors 1000 and 1600 mm
    rms deviation of the reflectors reflecting surface profile taking into account utilization factors not exceeding 0.5 mm
    Reflector reflecting surface contour
    Mass of a reflector with the aperture 1000 mm assembly 4.7 kg
    Mass of a reflector with the aperture 1600 mm assembly 8.4 kg

    Description

    Spacecraft antenna.
