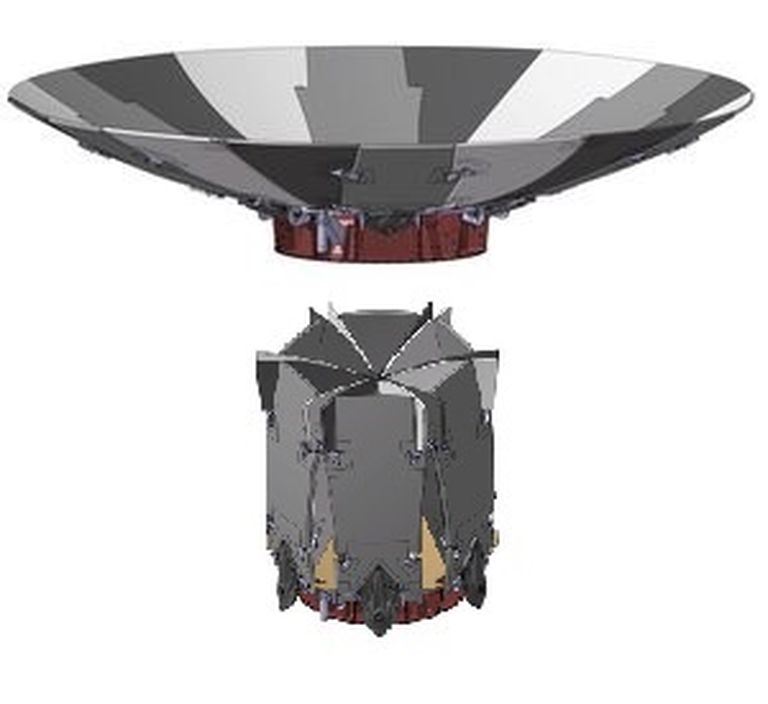

On-board High Precision Large Antenna for Deep Space Exploration

    • On-board High Precision Large Antenna for Deep Space Exploration

    Purpose:
    component of large antenna systems.
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Effective aperture D: 5+0.05 m
    Opening in the central part of the reflector 0.45±0.02 m
    Stowage zone of the reflector cylinder 1.9 m in diameter and 2.75 m in height
    Interface for antenna installation diameter 1400 mm
    Deployment repeatability not exceeding 0.02 mm (r.m.s)

    Description

    Component of large antenna systems.
