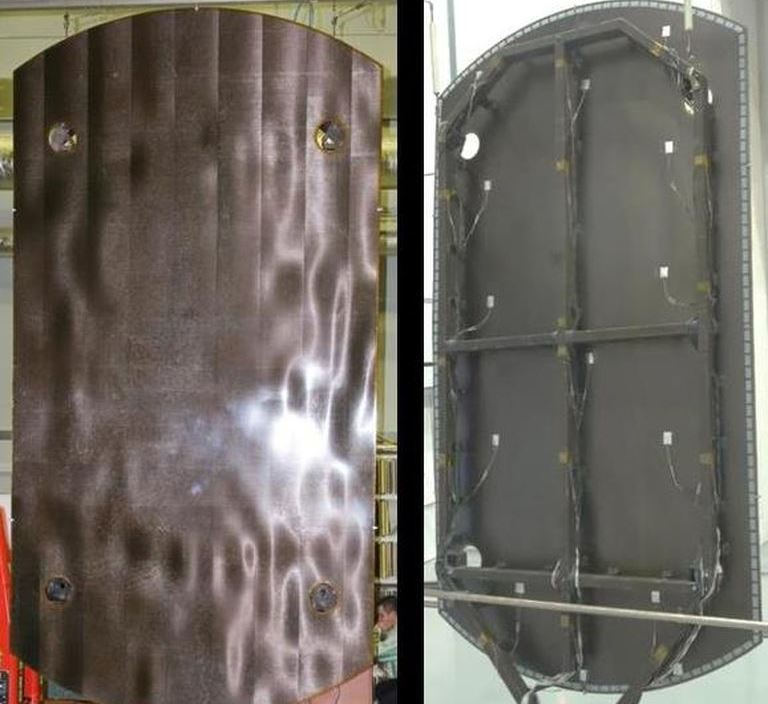

Reflector of the Large Ku-band Antenna System which Forms Planimetric Directional Diagram

    • Reflector of the Large Ku-band Antenna System which Forms Planimetric Directional Diagram

    Purpose:
    Component of the large Ku-band antenna system with planimetric directional diagram.
    Year of release: 2013
    Guaranteed service life (years): 15
    Estimated production / delivery time (months): 12
    Brief history of flight qualification:
    As a component of antenna underwent ground testing stage (preliminary tests).
    Submit application


    Parameter Value
    Frequency band Ku
    rms deviation of the reflector reflecting surface profile taking into account utilization factors not exceeding 0.4 mm
    Reflector reflecting surface contour
    Reflector dimensions 3500×2000 mm
    Boom dimensions 3850×1650 mm
    Reflector specific mass 2.5 kg/m2

    Description

    Component of the large Ku-band antenna system with planimetric directional diagram.
