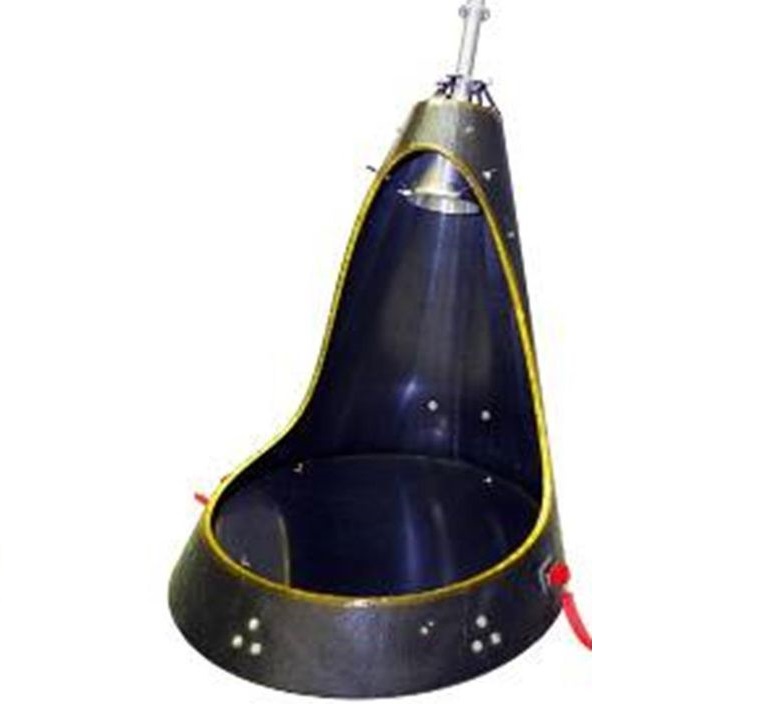

X-band Transmit/Receive Antenna

    • X-band Transmit/Receive Antenna

    Purpose:
    Forming required servicing area; signal radiation and reception within the operating frequency band; polarization selection of received signals and forming required polarization of the radiated signals.
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Frequency band Х
    Absolute gain along the directional diagram axis not less than 31.4 dB
    Reflector and load-bearing base material polymeric composite material
    Reflector aperture diameter 600 mm
    rms deviation of the reflector reflecting surface profile taking into account utilization factors not exceeding 0.4 mm
    Antenna dimensions 900×770 mm
    Antenna mass 6.9 kg

    Description

    Mirror antenna.
