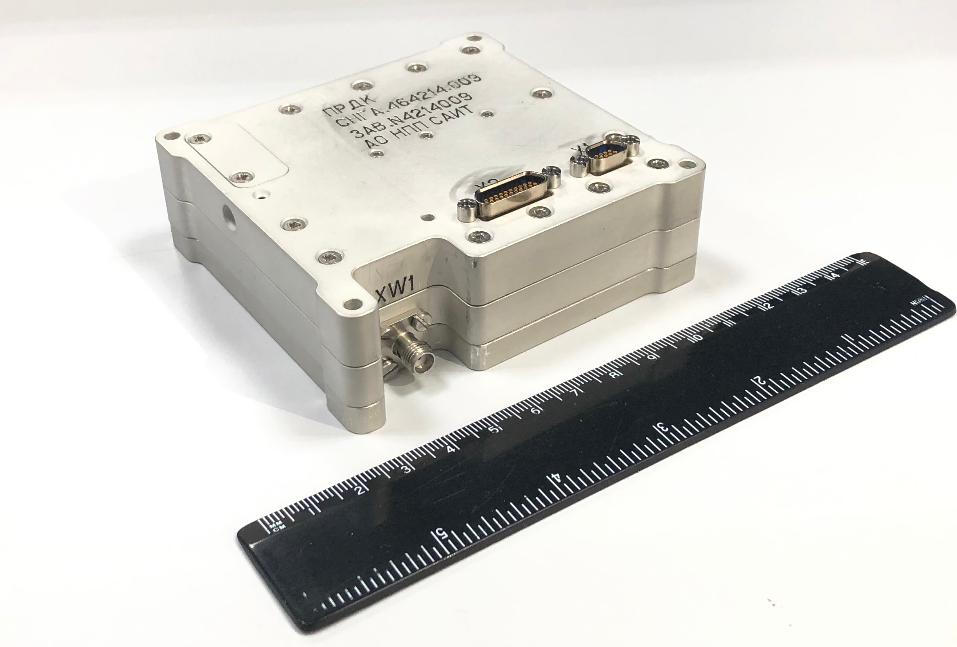

X-band Transmitter for Cubesat

    • X-band Transmitter for Cubesat

    Purpose:
    It provides reliable high throughput communication channel from the spacecraft to ground stations.
    Year of release: 2019
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 12
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Weight, kg 0,38
    Power consumption, W 22
    Throughput up to 1 Gbps
    Carrier frequency, GHz 8.1-8.5
    Output power, W 2,5
    Modulation QPSK, 8PSK, 16APSK
    Data interface LVDS

    Description

    The Cubesat X-band Transmitter with high throughput up to 1 Gbps.
