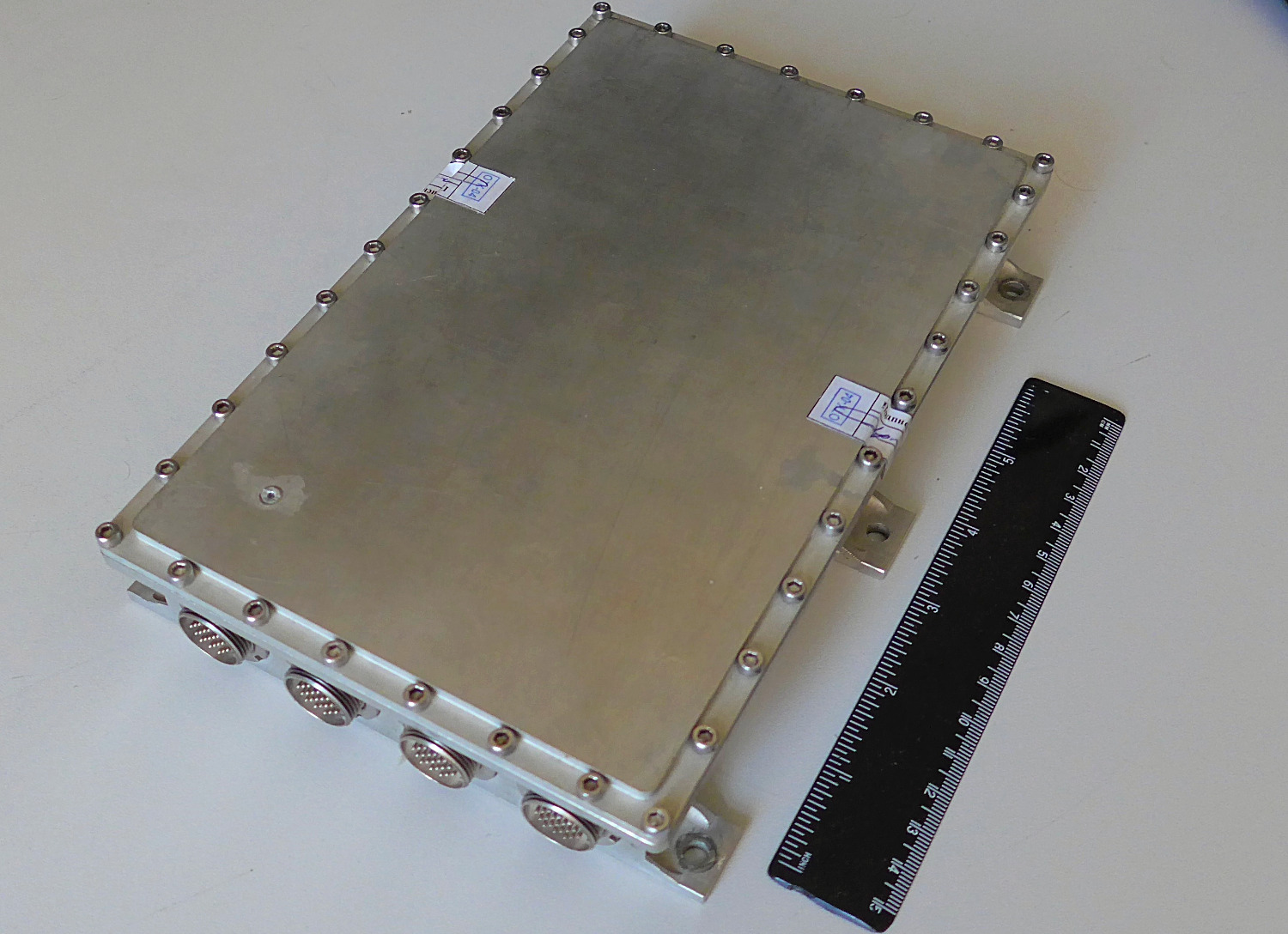

High-speed X-band Downlink Transmitter

    • High-speed X-band Downlink Transmitter

    Purpose:
    It provides reliable high throughput communication channel from the spacecraft to ground stations.
    Year of release: 2014
    Guaranteed service life (years): 7
    Estimated production / delivery time (months): 12
    Flight qualification of the product: Yes
    Brief history of flight qualification:
    Successfully worked on the following spacecraft: ISS (previous generation transmitter), AIST-2D and on other satellites.
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Weight, kg 1,8
    Power consumption, W 70
    Throughput up to 800 Mbps
    Carrier frequency, GHz 8,05 - 8,5
    Output power, W 8
    Modulation QPSK, 8PSK, 16APSK
    Data interface Customizable LVDS. Two ports with 4 pairs each
    Radiation at the component level >6 krad

    Description

    The High-speed X-band Downlink Transmitter with throughput up to 880 Mbps.
